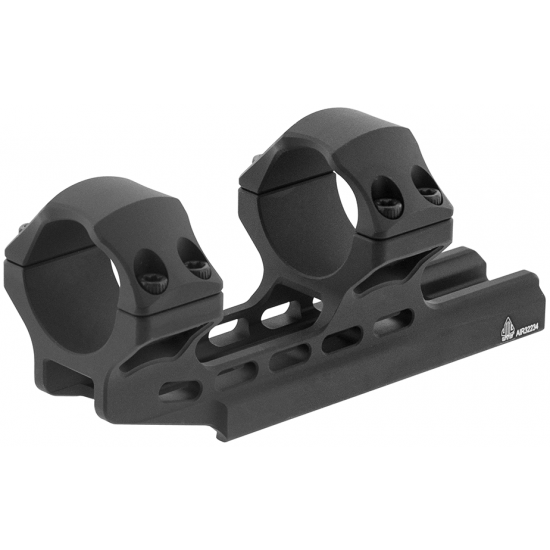

UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 34 mm Offset, High Profile, Black

SKU

AIR32234

in stock

$49.97

Dealer Price: $ $49.97 (Save $)

MAP: $39.97

$49.97

Dealer Price: $ $49.97 (Save $)

Notify me when the price drops

Details

22 mm Saddle Height, 34 mm Offset Distance, 100 mm Base Length, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter
Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization
Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability
Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment
Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold
NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35 in-lbs

Specifications

More Information
Made in USA	No
Warranty	Lifetime
Materials	6061-T6 Aluminum
Surface Finish	Anodized
Quick-detachable	No
Mount Type	Picatinny
Height Profile	High
Cant	Yes
Optic to Mount Torque Value	25 in-lbs
Mount to Rail Torque Value	35 in-lbs
Weight	153 g / 5.4 oz

Dimensions

Base Length	100 mm / 3.94 in
Center Height	37 mm / 1.46 in
Inner Dia.	30 mm
Max Fit Obj. Bell Dia	73 mm / 2.87 in
Offset Distance	34 mm / 1.34 in
Ring Distance (Inner)	44 mm / 1.73 in
Ring Width	25 mm / 0.98 in
Saddle Height	0.87 in
Saddle Height	22 mm / 0.87 in

Parts included

#	DESCRIPTION	QUANTITY
1	#8-32 Socket Head T20 Torx Screw	1
2	#8-32 Flat Head T20 Torx Screw	1
3	T20 Torx Wrench	1

LEAPERS® LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
