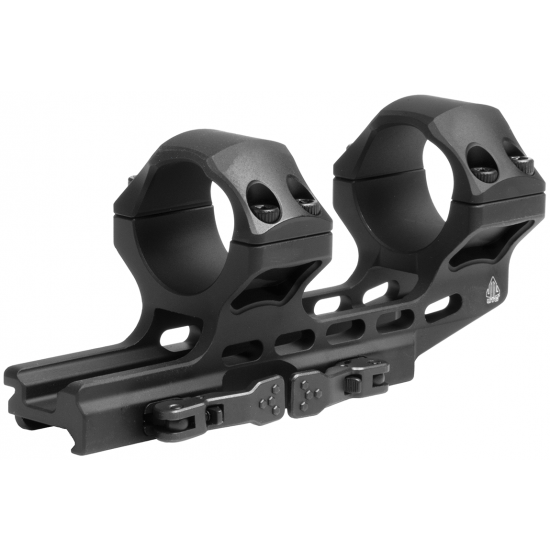

UTG® ACCU-SYNC® 30 mm QR Picatinny Cantilever Mount, 34 mm Offset, High Profile
SKU
AIR32234Q
UTG® ACCU-SYNC® 30 mm QR Picatinny Cantilever Mount, 34 mm Offset, High Profile
in stock
$89.97
$
$89.97
(Save $)
$79.97
$89.97
$
$89.97
(Save $)
- 22 mm Saddle Height, 34 mm Offset Distance, 44 mm Ring Distance, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter
- Precision CNC Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodization
- Quick Release (QR) Mount Features Tool-free Tension Adjustment, Locking QR Levers, and squared Recoil Stops for a Secure Zero Hold and Return to Zero
- Squared Recoil Stops Prevent Forward and Rearward Movement under Recoil
- Accommodates Even Most Out-of-spec Picatinny Rails
- Locking Quick Release Throw Levers Prevent Inadvertent Release
- Snag-free Radiused Edges and Corners and Melted Contours
- Lightening Cut for Reduced Weight
- Rated for .338 LAPUA Magnum
- NOTE: We recommend to tighten the ring top screws with a torque value of 25 inch-lb.
FULL CONTACT RECOIL STOPS
Rated for .338 Lapua magnum, squared recoil stops prevent forward and rearward movement under harsh recoil.
LOCKING QUICK RELEASE LEVERS
QR throw levers lock in place preventing inadvertent release from environmental obstruction.
TOOL-FREE & WIDE-RANGE TENSION ADJUSTMENT
Set tension once and adjustment stays locked in, accommodates even most out-of-spec Picatinny rails and provides a secure repeatable zero.
"OUNCES EQUAL POUNDS, POUNDS EQUAL PAIN"
Lightweight skeletonized aluminum construction saves weight where it counts.
ACCESSORIES INCLUDED
- Allen Wrench 3mm
- M4 Socket Head T15 Torx Head Screw
- T15 Torx Wrench
RESOURCES
| Warranty | Lifetime |
|---|---|
| Materials | 6061-T6 Aluminum |
| Color(s) | Black |
| Surface Finish | Anodized |
| Quick-detachable | Yes |
| Mount Type | Picatinny |
| Height Profile | High |
| Cant | Yes |
| Caliber Rating | .338 Lapua Magnum |
| Optic to Mount Torque Value | 25 in-lbs |
| Mount to Rail Torque Value | 35 in-lbs |
| Weight | 167 g / 5.9 oz |
Dimensions
| Base Length | 100 mm / 3.94 in |
|---|---|
| Center Height | 37 mm / 1.46 in |
| Inner Dia. | 30 mm |
| Max Fit Obj. Bell Dia | 73 mm / 2.87 in |
| Offset Distance | 34 mm / 1.34 in |
| Ring Distance (Inner) | 44 mm / 1.73 in |
| Ring Width | 25 mm / 0.98 in |
| Saddle Height | 0.87 in |
| Saddle Height | 22 mm / 0.87 in |
| # | IMAGE | DESCRIPTION | QUANTITY |
|---|---|---|---|
| 1 |  | M4 Socket Head T15 Torx Head Screw | 1 |
| 2 |  | T15 Torx Wrench | 1 |
| 3 |  | Allen Wrench 3mm | 1 |
