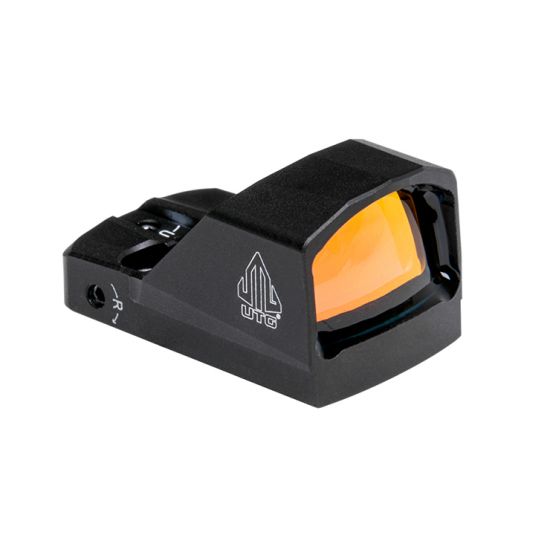

UTG® OP3 Mini Micro, Red 3 MOA Single Dot MRDS, for SHIELD RMSC

SKU

OT-RDM16R

UTG OP3 Mini Micro, Red 3.0 MOA Single Dot MRDS, for SHIELD RMSC Foorprint

OP3 Mini Micro: Constant-on, Automatic Brightness, IPX7 Waterproof, Red 3.0 MOA Single Dot, for Single Stack JP® Footprint

The UTG OP3 Mini Micro is a miniature reflex dot sight designed to supplement the wave of optics-ready, single stack, compact carry pistols. Despite its diminutive size and weight, the OP3 Mini Micro gives users the edge with its to-the-point feature set.

in stock

$149.97

Dealer Price: $ $149.97 (Save $)

MAP: $129.97

$149.97

Dealer Price: $ $149.97 (Save $)

Notify me when the price drops

Details

High Clarity Coated Glass Lens Housed within a Precision Machined Matte Black Anodized 6061-T6 Aluminum Body
Constant-on Automatic Brightness Adjusting Red 3 MOA Single Dot
30,000+ Hrs Battery Life
IPX7 Waterproof Rated
Lower 1/3 Co-witness with Most Standard Height Iron Sights
Integral Rear Backup Iron Sight Milled into Body
Protective Optic Cover Included
Compatible with Shield RMSc Footprint
Includes M3, M4, and #6-32 Hardware Screws for Greater Optics-Ready Pistol Platform Compatibility
Out-of-the-box Compatible with SIG P365X/XL, Glock 43X/48 MOS, Walther PPS M2 RMSc, Springfield Armory Hellcat OSP, Ruger Max-9, S&W Performance Center M&P SHIELD M2.0, and Most Other Optics-Ready Pistol Platforms
NOTE: We recommend torque value about 12 inch-lb

RESOURCES

USER MANUAL

COMPATIBILITY

FIREARM / SCREW SPEC.	M3	M4	#6-32
FOR SIG P365XL, P365X	âœ”
FOR GLOCK 43X, 48 MOS		âœ”
FOR WALTHER PPS M2 RMSC		âœ”
FOR SPRINGFIELD ARMORY HELLCAT OSP		âœ”
FOR RUGER MAX-9		âœ”
FOR CANIK TP9 ELITE SC		âœ”
FOR S&W PC M&P SHIELD M2.0			âœ”

SINGLE DOT RETICLE

Target Dot reticle consists of a single floating dot in the center as the aiming point with the least visual distraction. It is commonly used for quick aiming applications with lower demand for pin-point accuracy. The shooter aims by pointing the dot at the target. For a reflex dot sight based on light reflection, the sight usually does not have magnification and there is an unlimited eye relief. The dot is a reflected image of the light source with common characteristics from any light reflection, including possibly slight flare and fuzziness of the dot.

Specifications

More Information
Warranty	Lifetime
Materials	6061-T6 Aluminum
Surface Finish	Anodized
Parts Included	Cleaning Cloth, CR2032 3V High Energy Lithium Battery, Flat Head Screw #6-32, Length 8mm, Flat Head Screw M3x0.5, Length 8mm, Flat Head Screw M4x0.7, Length 8mm, Hex Wrench 1.5 mm, Protective Optic Cover, T10 Torx Wrench, W/E Dial Plate
Waterproof Rating	IPX7
Reticle	Single Dot
Reticle Color	Red
Brightness Settings	Gradual
Brightness Mode(s)	Automatic & Constant-on
Battery Type	CR2032 3V
Battery Life (hrs)	30,000
Battery Loading	Bottom Loading
Magnification	1X
Parallax	Infinity
Lens Material	Glass
Optic Footprint	For SHIELD RMSC
Weight	20 g / 0.7 oz

Dimensions

Height	22 mm / 0.85 in
Length	41 mm / 1.60 in
Width	24 mm / 0.96 in
Window Size	23 mm x 15 mm / 0.85 in X 0.59 in

Parts included

#	DESCRIPTION	QUANTITY
1	Flat Head Screw M3x0.5, Length 8mm	x2
2	Flat Head Screw #6-32, Length 8mm	x2
3	Flat Head Screw M4x0.7, Length 8mm	x2
4	Cleaning Cloth	1
5	Optics User Manual	1
6	CR2032 3V High Energy Lithium Battery	1
7	T10 Torx Wrench	1
8	Allen Wrench 1.5mm	1
9	Protective Optic Cover	1
10	W/E Dial Plate	1

LEAPERS® LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
